Demos

This is just to demonstrate genaral capabilities of the TFT28-105. It can be retrieved from git repository with the BasicDemo tag.

For enhanced DmTftLibrary it is recommended to stick with master branch and use the DmTft and DmTouch source directories.

Basic demo

The demo application shows the display possibilities:

You can see that screen clearing and image drawing is decently fast.

Let’s add the BLE scanner function since we seat on a WB55.

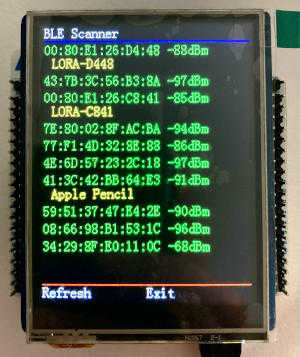

BLE scanner

The basic BLE code to install stack and make it run is MX generated. Then, a simple scan is scheduled by calling aci_gap_start_general_discovery_proc. The code waits for le_advertising_event to collect RSSI, visible name and remote addresses and reports them to the application that eventually draws the information onto the screen.
