Hardware

DisplayModule

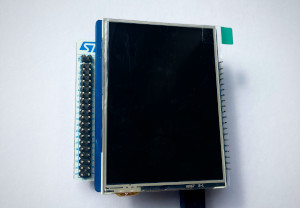

The DM-TFT28-105 module is available at DisplayModule’s site. They provide lots of OLED, TFT, LCD- E-paper screen modules. This one is arduino connector compatible and easy to stack on ST Nucleo boards.

Technical brief:

• 2.8” TFT screen (240x320, RGB 16bit/pixel)

• Resistive touch

• 4MB Flash

• SD slot

STMicroelectronics

STM32WB55 serie is the target here and the P-Nucleo-WB55RG is a nice board to play with. Technical brief:

• STM32 family with M4+M0 cores (dual core)

• 2.4GHz capable with 802.15.4, BLE4/5, ZigBee, OpenThread protocol stack firmware

• On-board ST-LINK

• USB connectors, 3 LEDs, buttons

• Battery socket
